Pro1laser

DioLase Titanium
Quattro 4D™

The Pinnacle of Precision and Power in Laser Hair Removal

Exclusive TruePulse™ Technology | Triple Wavelength Power | Ultimate Dermal Safety

DioLase Titanium Quattro 4D™

The DioLase Titanium Quattro 4D™ redefines clinical excellence in diode laser hair removal, merging TruePulse™ energy delivery with triple-wavelength technology (755 / 808 / 1064 nm) for exceptional efficacy across all skin types and hair textures. Crafted for discerning clinics and medical spas that demand best-in-class performance, the DioLase Titanium Quattro 4D™ offers what few systems can: uncompromising power, safety, and sophistication.
DioLase Titanium

The Prestige of TruePulse™ Energy Delivery

Unlike conventional diode systems that rely on simple stacking of pulses, TruePulse™ delivers consistent, stabilized energy within each individual pulse, ensuring full fluence output at every stage of the treatment cycle. This intelligent pulse integrity maximizes follicular damage while preserving surrounding tissue — minimizing discomfort and risk.

Benefits of TruePulse™ Over Traditional Diode Systems

DioLase Titanium Quattro 4D™ isn’t just about power — it’s about precision at every level. Our 4D Laser Precision™ approach optimizes treatments through

Dimension Clinical Focus
Depth Matches wavelength to follicle depth
Density Adjusts fluence for hair thickness and texture
Distribution Ensures even energy coverage across the field
Dermal Safety Maintains epidermal integrity with real-time cooling

The Science of Triple Wavelength Technology

Wavelength Target Chromophore Best For Penetration Depth
755 nm Melanin Fine/light hair, Fitzpatrick I–III, facial hair Superficial follicle targeting
808 nm Melanin Medium/coarse hair, most skin types (I–IV), body areas Mid-depth targeting
1064 nm Water/Vessels Coarse/thick hair, darker skin (IV–VI), vascular-rich areas Deep follicle penetration
This multi-wavelength synergy enables precision-matched energy delivery based on individual patient variables — ensuring safe, effective hair reduction on all Fitzpatrick skin types (I–VI) year-round.

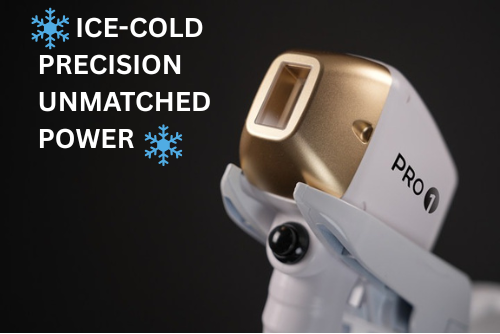

Elite Cooling System -35°C Sapphire Contact Technology

Patient safety and comfort are central to every DioLase Titanium treatment. Our -35°C sapphire contact cooling system provides continuous epidermal protection before, during, and after each pulse. This proprietary feature allows for virtually pain-free treatments without sacrificing clinical strength — no numbing agents required.
DioLase Titanium

Titanium Lifting™ Skin Tightening

Non-Invasive Firming Powered by TruePulse™ Triple-Wavelength Technology

Titanium Lifting™ is an advanced skin rejuvenation protocol integrated directly into the DioLase Titanium platform. Utilizing our proprietary TruePulse™ technology, it delivers precise thermal stimulation at 755 nm, 808 nm, and 1064 nm wavelengths to induce collagen remodeling, improve skin elasticity, and restore tone — all without downtime or surface damage. Unlike single-function lasers or dedicated skin tightening machines, Titanium Lifting™ works with the existing DioLase Titanium handpiece using specially configured pulse parameters that activate dermal remodeling across multiple depths of tissue.

Clinical Mechanism

Treatment Areas and Benefits

Patients can expect

Designed for Practice Efficiency

More Than Hair Removal — A Full Aesthetic Platform

Technical Specifications

Feature Specification
Wavelengths 755 / 808 / 1064 nm (Triple Combo)
Spot Size 12 x 36 mm
Energy Output Up to 120 J/cm²
Pulse Width Adjustable: 10–300 ms
Frequency 1–10 Hz
Cooling -35°C Sapphire Contact Cooling
Display 15.6” Ultra-HD 4K Touchscreen + On-Handpiece Controls
Handpiece Life Up to 150 million pulses
Treatment Modes Smart Mode / Pro Mode / In-Motion SHR
Certifications FDA Cleared

DioLase Titanium Quattro 4D™ vs. The Market

While many systems claim versatility, DioLase Titanium Quattro 4D™ stands apart through its TruePulse™ stabilized energy, triple-wavelength integration, and superior cooling performance. Compare this to competitor platforms that rely on basic stacking technology, limited wavelength options, or inadequate cooling — and the clinical advantage becomes clear.

The DioLase Titanium Difference Why Practitioners Choose Us

Empower Your Practice with DioLase Titanium Quattro 4D™

Offer your patients the luxury of technology that delivers results — with fewer sessions, greater safety, and maximum comfort. When it comes to premium diode laser hair removal, DioLase Titanium Quattro 4D™ is not simply another choice. It is the benchmark.
DioLase Titanium

FAQs for Diolase Titanium

The Diolase Titanium features advanced FAC (Fast Axis Collimation) technology, focusing the laser beam for enhanced precision. Few devices on the market offer this, making the Diolase Titanium highly effective for precise hair removal treatments.

Yes, businesses can choose between an 808 nm diode handpiece or a powerful three-wavelength 1800-watt handpiece (755/808/1064 nm).

808 nm handpiece: This is ideal for businesses primarily targeting Fitzpatrick skin types I to IV. It offers a balance of speed and efficacy, making it the gold standard for hair removal treatments.
Three-wavelength handpiece (755/808/1064 nm): This handpiece allows businesses to treat a wider variety of skin tones (Fitzpatrick I to VI) and hair types. It is a more versatile option for clinics wanting to expand their service offerings beyond basic hair removal, as it also supports skin rejuvenation treatments like the popular Titanium Lifting.

The 808 nm handpiece is cost-effective and ideal for businesses focused on providing hair removal services for a majority of skin types (I to IV). It’s the gold standard wavelength for hair removal, offering optimal penetration into the hair follicle with minimal risk to surrounding skin.

This option is perfect for businesses looking to cater to a broader range of clients with different skin tones and hair types. The combination of wavelengths:

755 nm: Targets lighter skin (Fitzpatrick I-III) and fine or lighter hair.
808 nm: Effective for most skin tones (Fitzpatrick I-IV) and hair types.
1064 nm: Safely treats darker skin (Fitzpatrick IV-VI) while also being effective for skin rejuvenation and deeper treatments, such as Titanium Lifting.

Titanium Lifting is a cutting-edge treatment currently in high demand in Korea. It combines the three wavelengths (755/808/1064 nm) for superior skin tightening and rejuvenation, making it highly versatile for both hair removal and skin treatments.

The Diolase Titanium is 95% similar to the Alma Soprano in terms of technology and results but is available at a fraction of the price, offering excellent value for practices seeking high-performance hair removal and skin rejuvenation solutions.

Yes, Pro 1 Laser offers flexible lending options with terms of up to 5 years, making it easier for practices to invest in the Diolase Titanium.

Yes, the Diolase Titanium is both Health Canada and FDA approved. The Health Canada MDL number is 111503, ensuring it meets the highest safety and efficacy standards.

The Diolase Titanium comes with a 2-year warranty, and its durable handpiece offers up to 150 million shots, making it ideal for long-term use.

The Diolase Titanium comes with a 2-year warranty, and its durable handpiece offers up to 150 million shots, making it ideal for long-term use.

The laser targets melanin in hair follicles, using concentrated light energy to damage the follicle and inhibit future growth. Its advanced FAC technology ensures precise targeting, while the 808 or three-wavelength handpiece options optimize results across various skin types and hair colors.

Yes, it’s safe for all skin types, from light to dark (Fitzpatrick types I to VI), thanks to the use of either the 808 or 755/808/1064 nm wavelengths and its advanced cooling system.

Most clients require 6 to 8 treatments, spaced 4 to 6 weeks apart, depending on individual hair growth cycles and the area being treated.

With its advanced cooling system, most clients find the treatment comfortable, describing the sensation as mild heat or tingling.

The Diolase Titanium can be used on all body areas, including sensitive regions like the face, underarms, and bikini line.

Session duration depends on the area being treated, ranging from a few minutes for small areas to up to an hour for larger areas.

Clients should avoid sun exposure and use sunscreen on the treated area. Hot baths and intense exercise should be avoided for 24 hours after treatment.

Diolase Titanium offers long-term reduction in hair growth, with some clients achieving near-permanent results. Occasional maintenance treatments may be needed.

Mild redness or swelling may occur but typically subsides within a few hours. Following post-care instructions reduces the risk of more significant side effects.

Contact us today to learn how DioLase Titanium Quattro 4D™ can elevate your clinic's offerings and set your treatments apart. Contact us today to learn how DioLase Titanium Quattro 4D™ can elevate your clinic's offerings and set your treatments apart.

Contact us today to learn how DioLase Titanium Quattro 4D™ can elevate your clinic's offerings and set your treatments apart.
